PWD 8692 [DC5]
Thermal disinfector and washer-disinfector with liquid dispensing & hot air drying DryPlus.
- Perf./cycle, e.g. 44 transmission instruments or 44suction devices
- Throughput/cycle e.g. 8 DIN mesh trays or 48GYN specula
- Safety through monitoring - wash pressure and spray arm monitoring
- Maximum user convenience with M Touch Flex full-touch colour display
- Efficient hot air drying - DryPlus
- Connectivity as standard via WiFi
Voltage:
AC 230V 50HZ 32 A
Product benefits

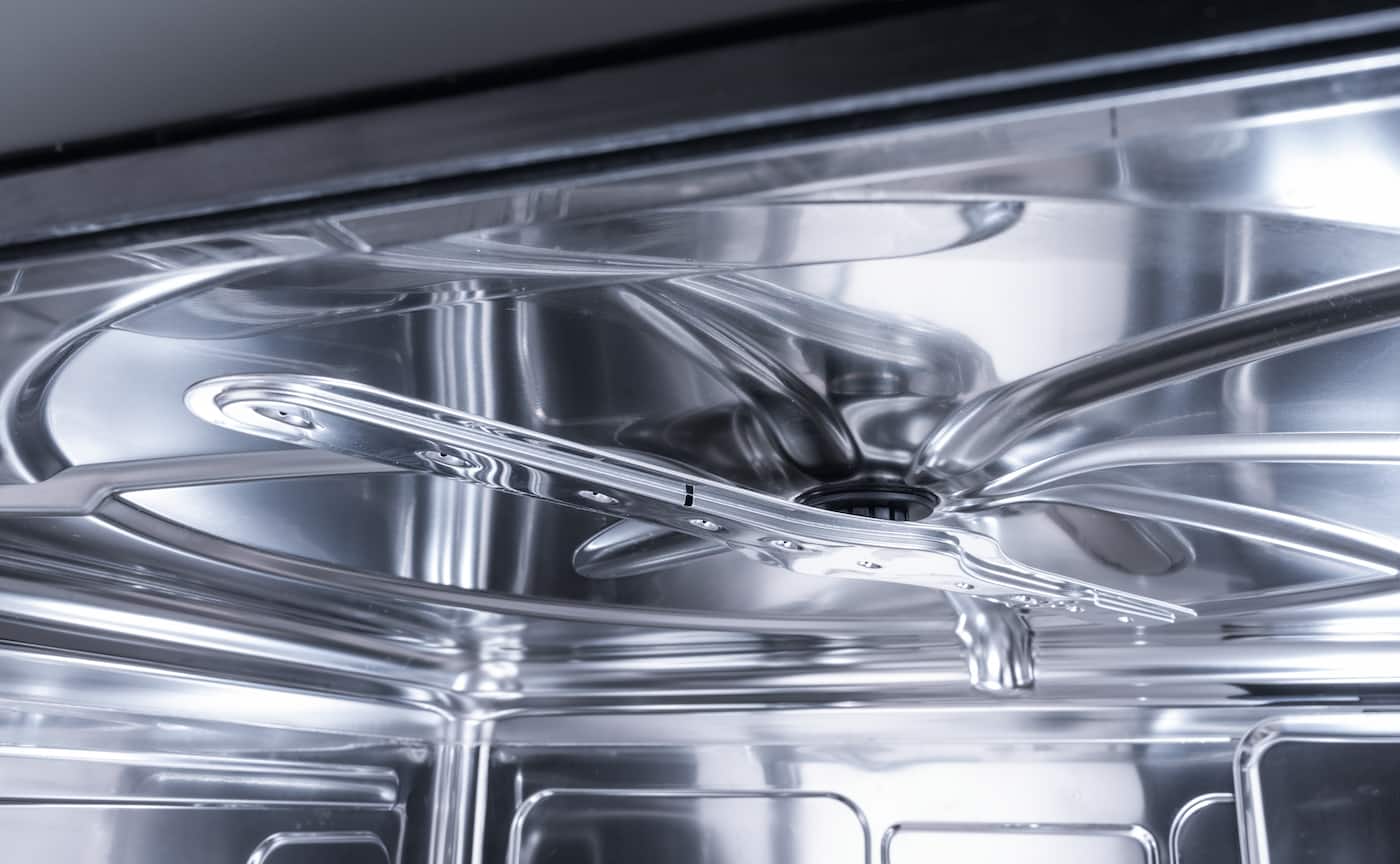

DryPlus Efficient hot air drying: Ideal for drying hollow body instruments or narrow-lumened laboratory glassware. Crevice-free wash cabinet Perfect hygiene through optimised geometry and laser welding. Spray arm monitoring Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm. Spray arm pressure monitoring The wash pressure is monitored for perfect cleaning results. How-to sequences This reduces downtimes and ensures smooth processes. M Touch Flex controls Use all programmes and machine functions conveniently with a touch of a fingertip on the clear text touch display. Wash cabinet lighting The machine has 2 LEDs in the top of the wash cabinet. Variable speed heater pump Only with Miele Professional: The wash pressure is perfectly tailored to the changing requirements. Integrated water softener The integrated water softener ensures optimum cleaning effectiveness. DryPlus Efficient hot air drying: Ideal for drying hollow body instruments or narrow-lumened laboratory glassware. WiFi interface WiFi for flexible and secure communication Miele MOVE Connect (option) Compatible with the optional Miele MOVE Connect software solution for networking the appliance. Miele MOVE MedDent+ (option) Compatible with the optional Miele MOVE MedDent+ software solution for extended process documentation. Crevice-free wash cabinet Perfect hygiene through optimised geometry and laser welding. Heater elements outside the wash cabinet A plus for hygiene: The heating elements are installed outside the wash cabinet. Easy-to-service construction Short service times thanks to maintenance-optimised appliance design. Spray arm monitoring Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm. Spray arm pressure monitoring The wash pressure is monitored for perfect cleaning results. HEPA filters Protection against contamination thanks to particle-free drying air. Process documentation Safety through the clear documentation of all the reprocessing steps. Waterproof System (WPS) Protection against flooding: In the event of problems, the system stops water intake automatically. How-to sequences This reduces downtimes and ensures smooth processes. M Touch Flex controls Use all programmes and machine functions conveniently with a touch of a fingertip on the clear text touch display. Wash cabinet lighting The machine has 2 LEDs in the top of the wash cabinet. Clear text display Everything at a glance: The display shows everything as clear text in the country-specific language. Comfort suction lance DC5 Dispensing module for 5 l canisters, for automatic dispensing of liquid media, with fill level detection. Flexible language selection The language setting can be changed at any time – even during a cleaning process. Process approval directly via the display Batch control processes can be approved directly on the machine, simplifying many everyday processes. AutoClose* A light touch is all it takes: With AutoClose, the door closes by itself. Large selection of accessories Flexible and comprehensive components for optimum cleaning performance and a variety of reprocessing options. Patented, in-door salt container Ergonomic convenience: The in-door salt container is particularly easy to fill. Can be built under a worktop The machine can be easily integrated under a worktop.
Product benefits
- Highlights
- Cleaning results
- Connectivity
- Quality
- Safety
- User convenience
Highlights
Cleaning results
Connectivity
Quality
Safety
User convenience


Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PWD 8692 [DC5]
EAN 4002516999409 / Article number 62869210NWE / Material number 13053470
| Construction type | Freestanding, can be built-under, slimline |
| Range | ExpertLine |
| Casing | White |
| Control panel colour | Black |
| Lid | Stainless steel, lotus white coated |
| Can be built-under | |
| Number of wash levels | 2 |
| AutoClose – automatic door lock | |
| Buzzer, acoustic signal at end of programme | |
| Service-friendly design |
| Suitable for hospitals | |
| Suitable for dental surgeries | |
| Suitable for doctors’ surgeries | |
| Suitable for outpatient surgeries | |
| Suitable for veterinary practices | |
| Suitable for podiatry practices |
| DIN mesh trays per cycle [number] | 8 |
| GYN specula per cycle [number] | 48 |
| MIS sets per cycle [number] | 1-2 |
| Ophthalmology sets per cycle [number] | 8 |
| AN sets per cycle [number] | 2-3 |
| Theatre shoes per cycle [number] | 28 |
| Surgical saliva extractors per cycle [number] | 44 |
| Lumened instruments per cycle [number] | 44 |
| Transmission instruments per cycle [number] | 44 |
- DIN mesh trays per cycle [number]
- 8
- GYN specula per cycle [number]
- 48
- MIS sets per cycle [number]
- 1-2
- Ophthalmology sets per cycle [number]
- 8
- AN sets per cycle [number]
- 2-3
- Theatre shoes per cycle [number]
- 28
- Surgical saliva extractors per cycle [number]
- 44
- Lumened instruments per cycle [number]
- 44
- Transmission instruments per cycle [number]
- 44
| Miele MOVE Connect (option) | |
| Miele MOVE MedDent+ (option) |
- Miele MOVE Connect (option)
- Miele MOVE MedDent+ (option)
| Control type | M Touch Flex |
| Process approval directly via the display | |
| Max. delay start in h | 24 |
| Programmability | programmable |
| Programmes [number] | 24 |
| Free programme positions [number] | 5 |
| A0 value controls | |
| Time left display | |
| Programme sequence display | |
| Selectable display languages |
| Electrical connection | 2 AC 230V 50HZ |
| Electric heater rating in kW | 2.5 |
| Total rated load in kW | 3.3 |
| Fuse rating in A | 16 |
- Electrical connection
- 2 AC 230V 50HZ
- Electric heater rating in kW
- 2.5
- Total rated load in kW
- 3.3
- Fuse rating in A
- 16
| Cold water [number] | 1 |
| Hot water [number]i | 1 |
| DI water [number]i | 1 |
| VEP feed pump for demineralised water (option)i | |
| Required flow pressure in kPai | 200-1000 |
| Maximum delivery head for drain pump in cm | 100 |
| Integrated water softener | |
| Maximum water hardness (cold water/hot water) in mmol/l | 10.7 |
| Drain pump [DN] | 22 |
| Water protection systemi | Waterproof system |
- Cold water [number]
- 1
- Hot water [number]i
- 1
- DI water [number]i
- 1
- VEP feed pump for demineralised water (option)i
- Required flow pressure in kPai
- 200-1000
- Maximum delivery head for drain pump in cm
- 100
- Integrated water softener
- Maximum water hardness (cold water/hot water) in mmol/l
- 10.7
- Drain pump [DN]
- 22
- Water protection systemi
- Waterproof system
| Integrated drying unit | |
| Fan in kW | 0.3 |
| Heater element in kW | 2.2 |
| Air throughput in m³/h | 60 |
| Time setting in 1-minute increments | 0-120 |
| HEPA filter class | H13i |
| HEPA filter filtration efficiency (in accordance with DIN EN 1822) in % | 99.95 |
| HEPA filter service life in h | 200 |
| External dimensions, net height in mm | 835 |
| External dimensions, net width in mm | 598 |
| External dimensions, net depth in mm | 598 |
| External dimensions, gross height in mmi | 920 |
| External dimensions, gross width in mmi | 670 |
| External dimensions, gross depth in mmi | 740 |
| Wash cabinet, usable height in mm | 520 |
| Wash cabinet, usable width in mm | 530 |
| Wash cabinet, depth of upper basket in mm | 523 |
| Wash cabinet, depth of lower basket in mm | 520 |
| Net weight in kg | 81 |
| Gross weight in kgi | 90 |
| Maximum floor load in N/m²i | 1220 |
- External dimensions, net height in mm
- 835
- External dimensions, net width in mm
- 598
- External dimensions, net depth in mm
- 598
- External dimensions, gross height in mmi
- 920
- External dimensions, gross width in mmi
- 670
- External dimensions, gross depth in mmi
- 740
- Wash cabinet, usable height in mm
- 520
- Wash cabinet, usable width in mm
- 530
- Wash cabinet, depth of upper basket in mm
- 523
- Wash cabinet, depth of lower basket in mm
- 520
- Net weight in kg
- 81
- Gross weight in kgi
- 90
- Maximum floor load in N/m²i
- 1220
| Vario TD Intensive | |
| Vario TD Dental | |
| Vario Dental + | |
| Vario TD Instr 4 mesh trays | |
| Vario TD Instr 6 mesh trays | |
| Vario TD Instr 8 mesh trays | |
| Vario TD Container | |
| Vario TD AN | |
| Vario TD MIS | |
| Vario TD GYN | |
| Vario TD ENT | |
| Vario TD ENT + | |
| Vario TD ENT Optics | |
| Ophthalmology | |
| Ophtha tray A 207 | |
| Baby bottles | |
| Theatre shoes | |
| Ward utensils | |
| Universal | |
| Cold water rinse |
- Vario TD Intensive
- Vario TD Dental
- Vario Dental +
- Vario TD Instr 4 mesh trays
- Vario TD Instr 6 mesh trays
- Vario TD Instr 8 mesh trays
- Vario TD Container
- Vario TD AN
- Vario TD MIS
- Vario TD GYN
- Vario TD ENT
- Vario TD ENT +
- Vario TD ENT Optics
- Ophthalmology
- Ophtha tray A 207
- Baby bottles
- Theatre shoes
- Ward utensils
- Universal
- Cold water rinse
| 1 door dispenser for rinse aid | |
| 1 dispenser pump for liquid cleaning agent | |
| Suction lance for media canisters 10–20 l (optional) | |
| Convenient suction lance DC5 | |
| Volume flow control | |
| Steam condenser | |
| Spray pressure monitoring | |
| Spray arm monitoring | |
| How-to sequences | |
| Wash cabinet lighting | |
| Interface for process documentation (optional) | |
| Multi-component filter system | |
| Variable-speed heater pump | |
| Load carrier – direct coupling | |
| DryPlus | |
| In-door salt container | |
| Customer Service optical interface | |
| Wash cabinet seamlessly welded using laser technology | |
| Heater elements outside wash cabinet | |
| Wash cabinet made from high-quality stainless steel (1.4301/304) | |
| Extensive components (option) |
- 1 door dispenser for rinse aid
- 1 dispenser pump for liquid cleaning agent
- Suction lance for media canisters 10–20 l (optional)
- Convenient suction lance DC5
- Volume flow control
- Steam condenser
- Spray pressure monitoring
- Spray arm monitoring
- How-to sequences
- Wash cabinet lighting
- Interface for process documentation (optional)
- Multi-component filter system
- Variable-speed heater pump
- Load carrier – direct coupling
- DryPlus
- In-door salt container
- Customer Service optical interface
- Wash cabinet seamlessly welded using laser technology
- Heater elements outside wash cabinet
- Wash cabinet made from high-quality stainless steel (1.4301/304)
- Extensive components (option)
| VDE (electrical safety) | |
| IP safety class according to EN 60529: IP 21 | |
| EN 61010-1 | |
| EN 61010-2-040 | |
| RoHS guideline 2011/65/EU | |
| EU medical device class IIb |
- VDE (electrical safety)
- IP safety class according to EN 60529: IP 21
- EN 61010-1
- EN 61010-2-040
- RoHS guideline 2011/65/EU
- EU medical device class IIb
